1300kg braked trailer axle for 1500mm wide chassis
Product Details

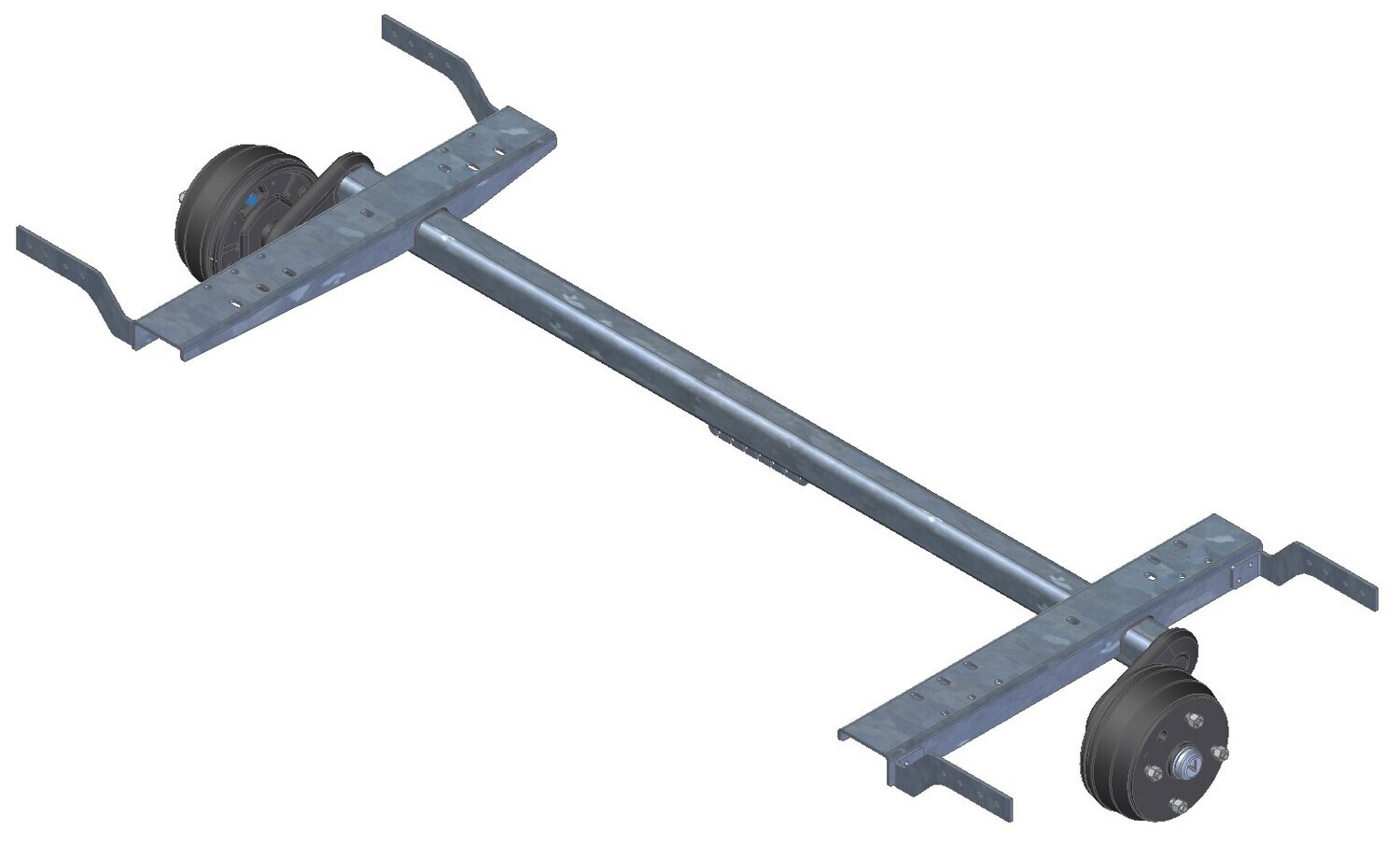

1300kg galvanised braked trailer axle
Boat trailer axle fitted to De Graaff Trailers
Capacity 750kg to 1300kg
To suit a chassis with an overall width of 1500mm from outside to outside of the chassis
Axle can be u-bolted to a chassis rail of 40mm or 50mm wide

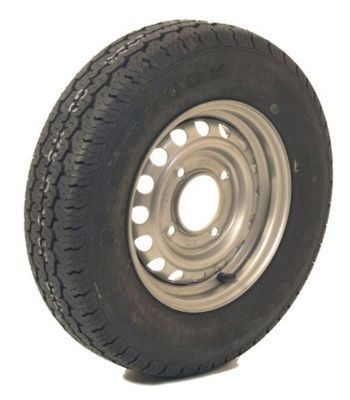

Bolt on mudguard brackets to take a 13" wheel
4 x 5.5" (139mm) PCD brake drum
Come with M12 (19mm) conical wheel nuts
